External Activity

This uses the Assignment page type to link users out to an external application. The learner is redirected to that application with a token that provides information regarding that learner that the external application can parse so they know who the learner is. Here are the steps to set this up:

1. From your homepage, select Courses > All Courses.
2. Click the course title where you want to use external assignment activity.
3. Click the plus sign in your course outline > hover over the Add Page icon and click.

4. Select Assignment page type.
5. Expand the Assignment Options section. Then enable External Activity?.

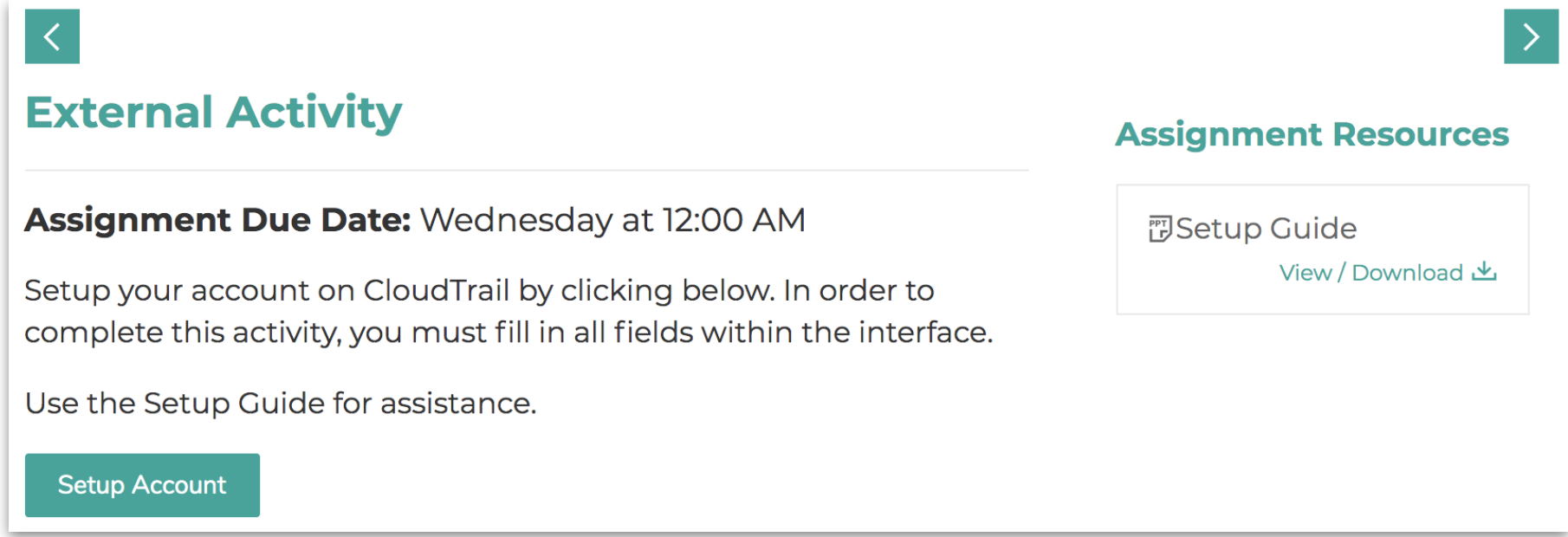

6. In the External Activity CTA Button Text field, enter the Call to Action you want the learner to see on the button that will redirect them to the external application (e.g. Go to Virtual Lab).

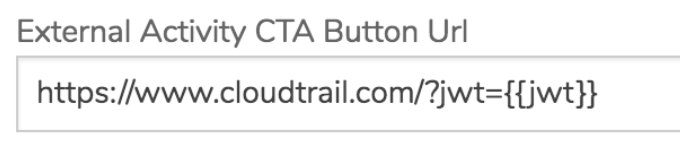

7. In the External Activity CTA Button URL field, enter the URL of the external application you want the learner to go to. Make sure to append the JWT token at the end of the URL: /?jwt={{jwt}}


   Note

   It is important that the external application you are sending learners to can parse a JWT token in order to read who this learner is. Work with your partner to ensure they can receive the data.

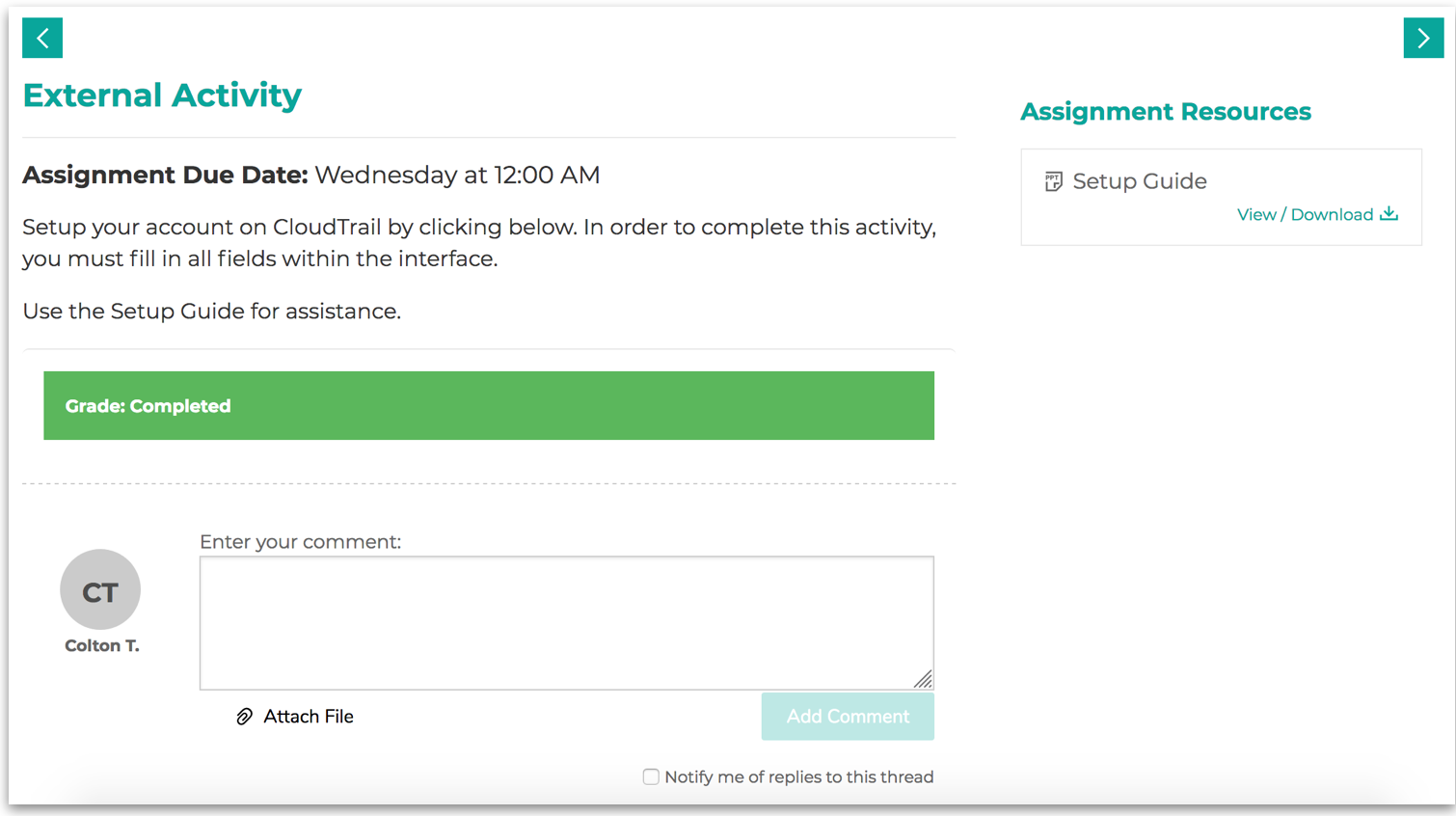

8. Once configured, the learner will click the CTA button and navigate to the activity.

9. Thought Industries sends the following information to the external application through the JWT.
   • Learner Credentials
     • Email
     • First Name
     • Last Name
     • Refs 1-10
   • Course Information
     • Course Title
     • SKU
     • ID
     • Custom Content Fields
   • A special returnTo URL for the learner to be navigated back to the platform.
   • Example External Activity Payload:


     {
       "courseTitle": "External Activity",
       "courseSku": "ext1234",
       "courseId": "aed59c4d-06d6-421b-b384-fee36123c47a",
       "returnTo": "https://school.thoughtindustries.com/learn/externalActivity?jwt=eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdGF0dXMiOiJjb21wbGV0ZWQiLCJyZXR1cm5VcmwiOiIvbGVhcm4vbWFuYWdlci9jb3Vyc2UvYWVkNTljNGQtMDZkNi00MjFiLWIzODQtZmVlMzYxMjNjNDdhL3NlY3Rpb25zL2xlc3Nvbi80NTEzYjYxZi0yMjM3LTQxMmYtYTBmYy03YmM1N2NhNzQ2NWYvdG9waWMvNmY3ZjllNjktOGU0My00ZjUyLWFkZjktMzhiN2U0YjM4MzFhP3RhYj1jb250ZW50IiwiYXNzaWdubWVudElkIjoiNmY3ZjllNjktOGU0My00ZjUyLWFkZjktMzhiN2U0YjM4MzFhIiwibGVhcm5lcklkIjoiM2I1OTdiZmEtMTgwNS00OTEyLWE5ZWItYjMzM2M5MDM3ZDBiIiwiaWF0IjoxNzIwNzk0MjIyfQ._5WBJwHfebqy-CQwH4GMLufdpdZU_Atygbaocpp2hzM",
       "email": "philip.smith1234@gmail.com",
       "externalCustomerId": null,
       "firstName": "Philip",
       "lastName": "Smith",
       "role": "admin",
       "ref1": null,
       "ref2": null,
       "ref3": null,
       "ref4": null,
       "ref5": null,
       "ref6": null,
       "ref7": null,
       "ref8": null,
       "ref9": null,
       "ref10": null,
       "iat": 1720794222
     }

10. In the above-mentioned returnTo URL, the external application can send back the following information:
    • Assignments Status / Grade
      • Status (Completed or Incomplete)
      • Assignment ID
      • Learner ID
      • Grades can be crafted into the returnTo URL JWT.
    • Example Return to Thought Industries Payload:


      {
        "status": "completed",
        "returnUrl": "/learn/manager/course/aed59c4d-06d6-421b-b384-fee36123c47a/sections/lesson/4513b61f-2237-412f-a0fc-7bc57ca7465f/topic/6f7f9e69-8e43-4f52-adf9-38b7e4b3831a?tab=content",
        "assignmentId": "6f7f9e69-8e43-4f52-adf9-38b7e4b3831a",
        "learnerId": "3b597bfa-1805-4912-a9eb-b333c9037d0b",
        "iat": 1720794222
      }

The LTI page type allows external applications to be launched within the Thought Industries course frame in order for the learner to view or complete content on that application. While the learner will be authenticated into the application via the LTI page type, you cannot pass any information back to Thought Industries regarding whether the learner completed the external activity or earned a grade.

1. From your homepage, select Courses > All Courses.
2. Click the course title where you want to use external assignment activity.
3. Click Add Page, then select LTI page type.
4. Enter the following information in fields provided:
   • LTI Tool URL: Enter the URL of the external application you want the learner to launch.
   • Consumer Key and Consumer Secret: These two items you will need to get from the LTI tool. Most will not open without them. However some LTI tools do not require them.
   • Height and Width: Adjust these as need to launch the tool within course frame.
5. The end result will allow the learner to view and interact with the external application within a course frame.
